Reach II Back To Wall Toilet Suite With Slim Seat Rear Entry Or Side Inlet

The next generation space saving Reach, with rimless technology.

The contemporary, flared straight skirt and HygieneMAX rimless pan make it both good looking and easy to clean. It is available in two comfortable seat types – wrap over and slim, and the small projection makes it an ideal choice when space is limited.

Features

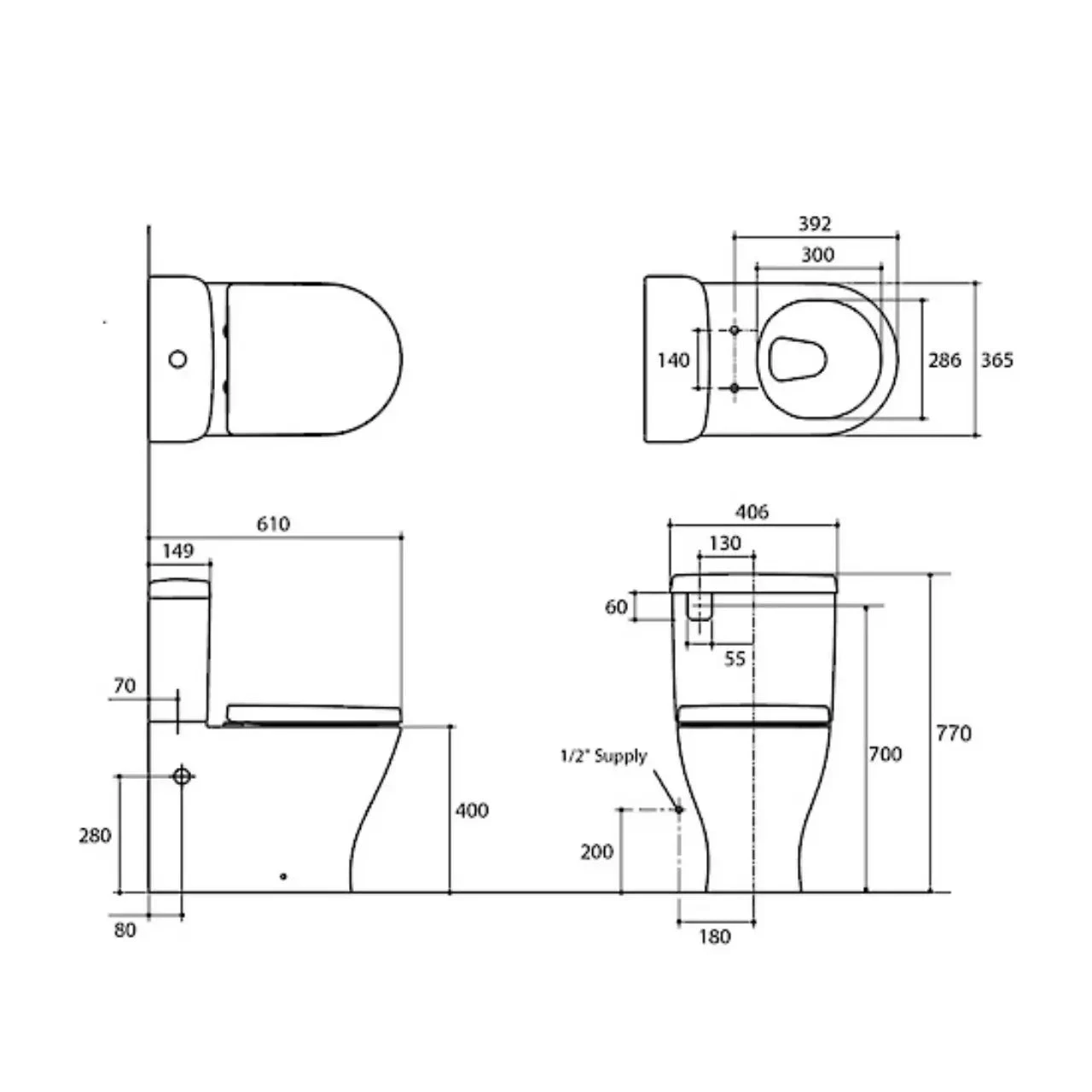

• 610mm projection – ideal for smaller spaces
• Quiet Close, Quick Release toilet seat
• Two seat options: wrap over and slim
• Rear and side entry toilet suite
• P-trap set out: 185mm
• S-trap set out: 90-140mm (with vario pan connector 12503A-NA, supplied); 170-230mm (with long adjustable vario pan connector 77837A-NA, not supplied)
• WELS Rating: 4 Star, dual flush 4.5/3.5L

Included Components

• Reach II toilet pan
• Reach toilet cistern 4.5/3L
• Option slim or wrap over seat
• Vario pan connector
• Fill valve for rear entry
• Rear entry water supply hose (pan side entry water supply hose not supplied)
• 2 x pan inlet covers
• Floor fixing bolts, anchors and chrome covers
• Back to wall pan
• Reach tank
• Bottom entry valve
