Radiant Underfloor Heating 200W *Under Tile Cable Mat Kit* (Bathroom)

Under-Tile systems in bathrooms can be supplied as cable pre-spaced on a mat or loose on a drum. With the mat system the mesh is self-adhesive so will stick directly to a sealed or waterproofed floor while it is tiled over. Where large format, rectified or heavy stone tiles are being installed, we recommend first covering the cables or mats with a thin self-level to protect the heating cable during the tiling process.Thermasheet insulation boards can be used to create a thermal break between the heating and sub-floor which will maximise efficiency.

Our under tile floor heating kit is perfect for putting floor heating under tiles, where the floor cannot be screeded. The cable is attached directly to a mat, that is installed on the base surface and is then covered with the tile adhesive and tiles. The thin 3mm cables means that the tiler only has to use a little bit of extra adhesive. The mats are 500mm wide and are easily installed by cutting the matting (NOT THE CABLE) and snaking the mat backwards and forwards filling in the area to be heated.

• Under Tile
• Cable Mat Kit
• Use In: Bathroom
• Mat Included
• Kit Includes:
  • Heating Cable on Mat

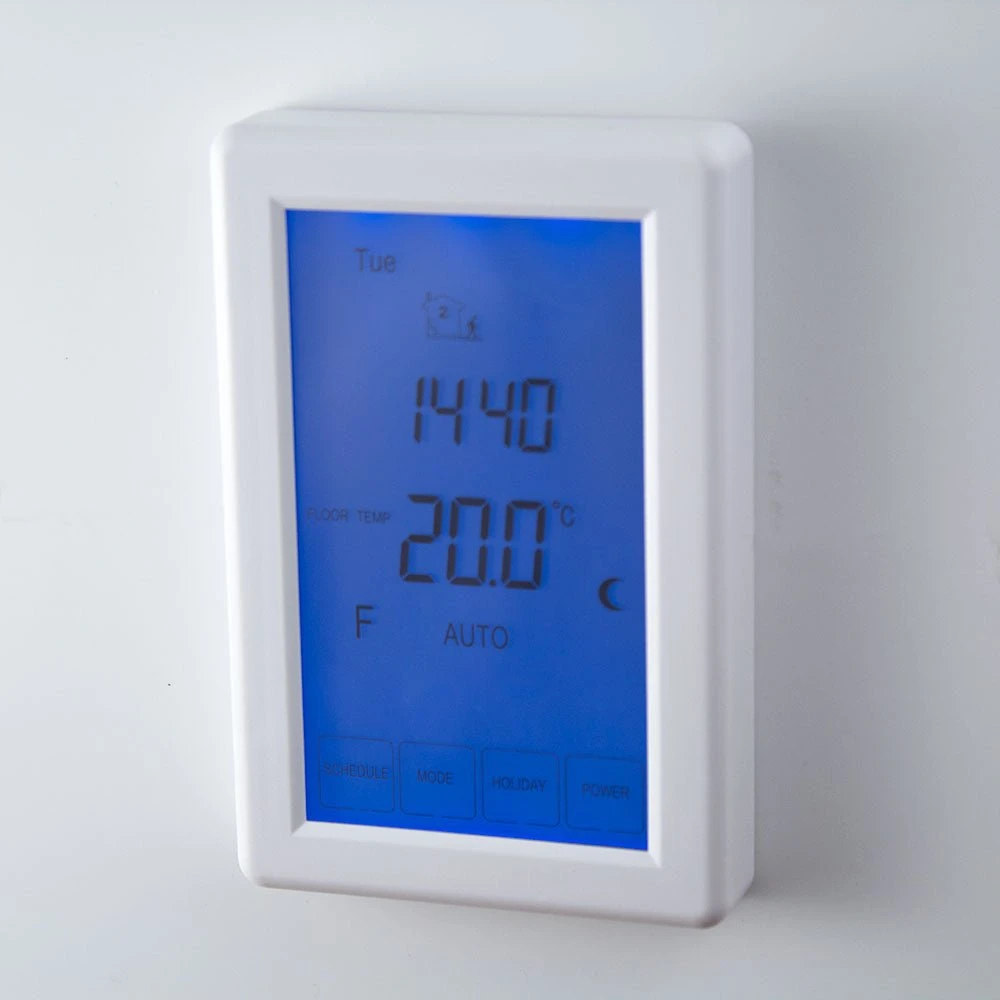

  • TS8100-TH-V Thermostat
  • Cable Alarm
  • Full Instructions
  • Cloth Duct Tape
• Standard 240V
• Wattage: 200W
• Watts per Sqm: 200W per sqm
• IP Rating: IPX7
• Cable Thickness: 3mm
• Warranty: 10 years (2 years on Thermostat)
• Under Tile Cable MAT Kit Installation
• Under Floor Heating Kits Warranty Registration Form
• Radiant Underfloor Heating Kits brochure
