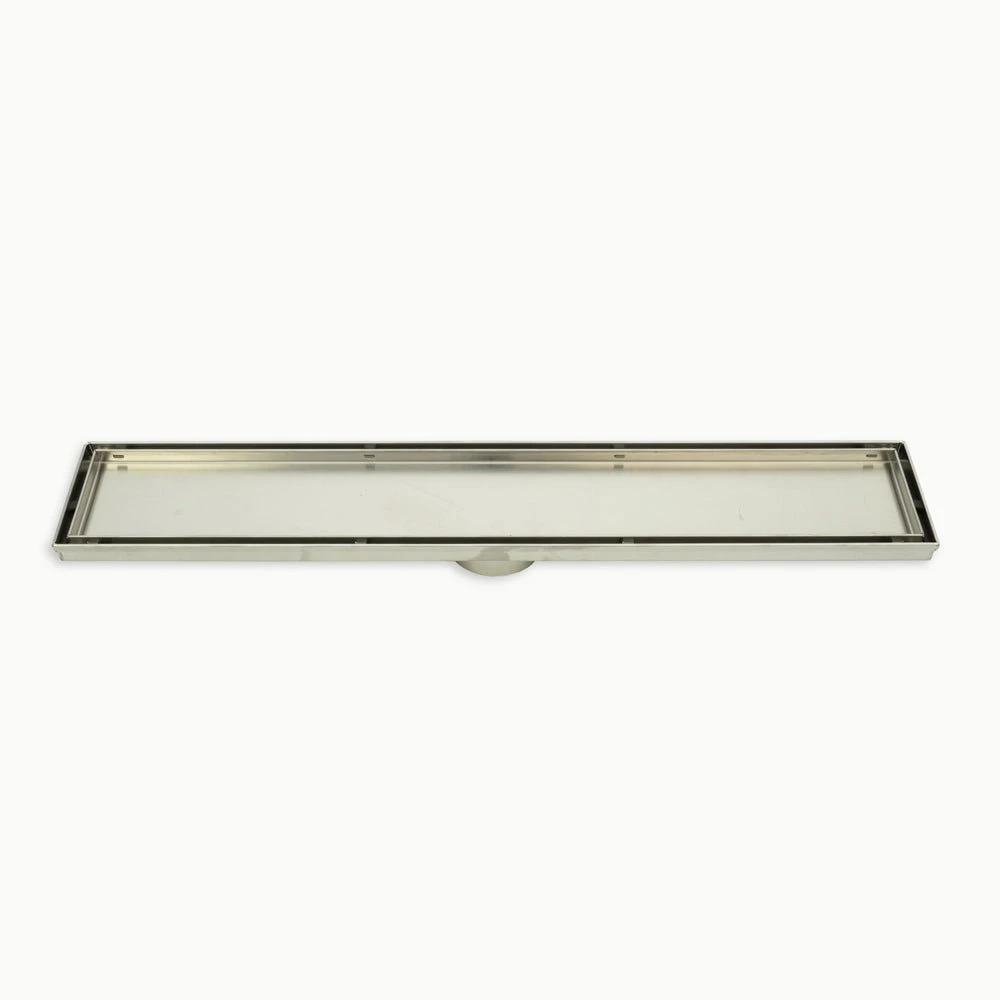

Radiant Tile Insert Floor Grate 700mm (90mm Outlet)

Radiant tile insert floor wastes and channel drains are manufactured from premium 316 grade stainless steel and are available in a wide variety of sizes and outlets, allowing you to integrate any tile or stone to seamlessly match the rest of the bathroom.

• 316 Grade Stainless Steel
• Linear Floor Grate
• Brushed Satin
• Width: 100mm
• Length: 700mm
• Depth: 52mm
• Insert Depth: 12mm

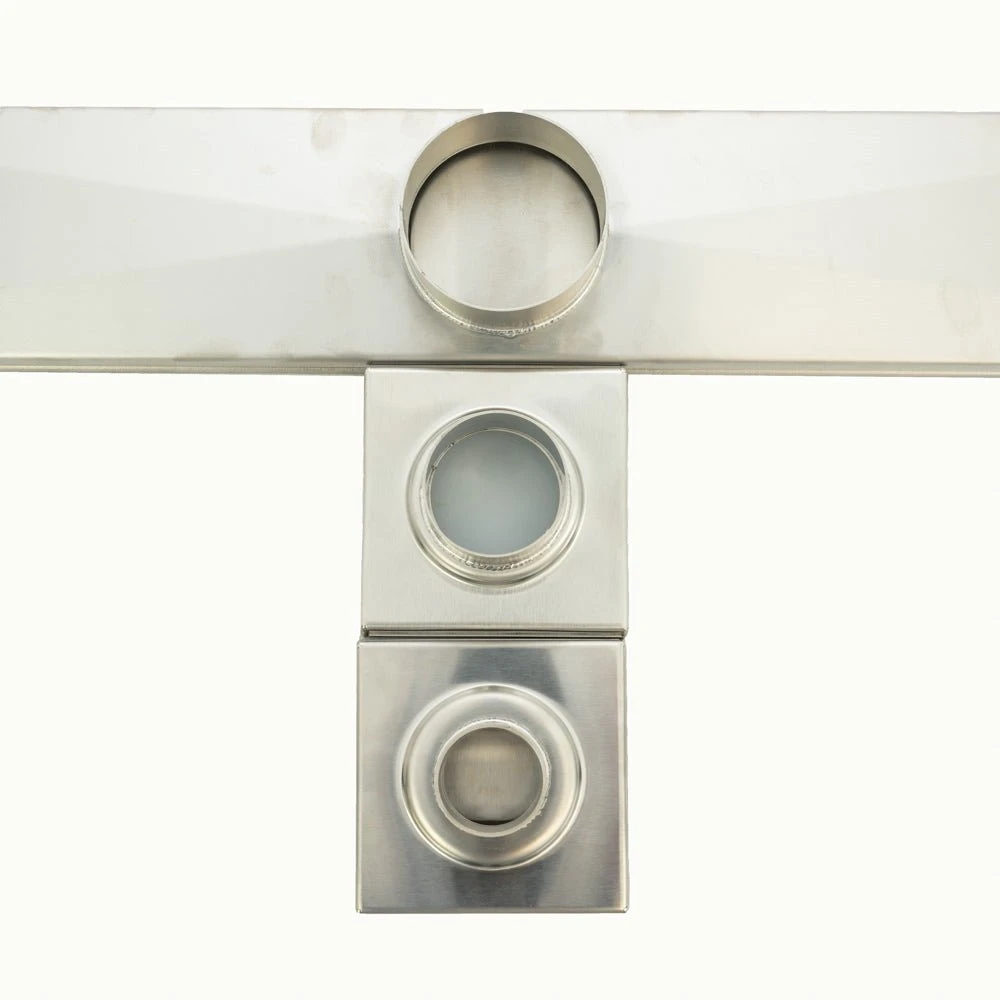

• Outlet Diameter: 90mm
• Waste Pipe Size: 100mm
• Puddle flange is not included with this grate
• Fixed Central Outlet
• Suitable For Use In Showers
• Warranty: 7 years*

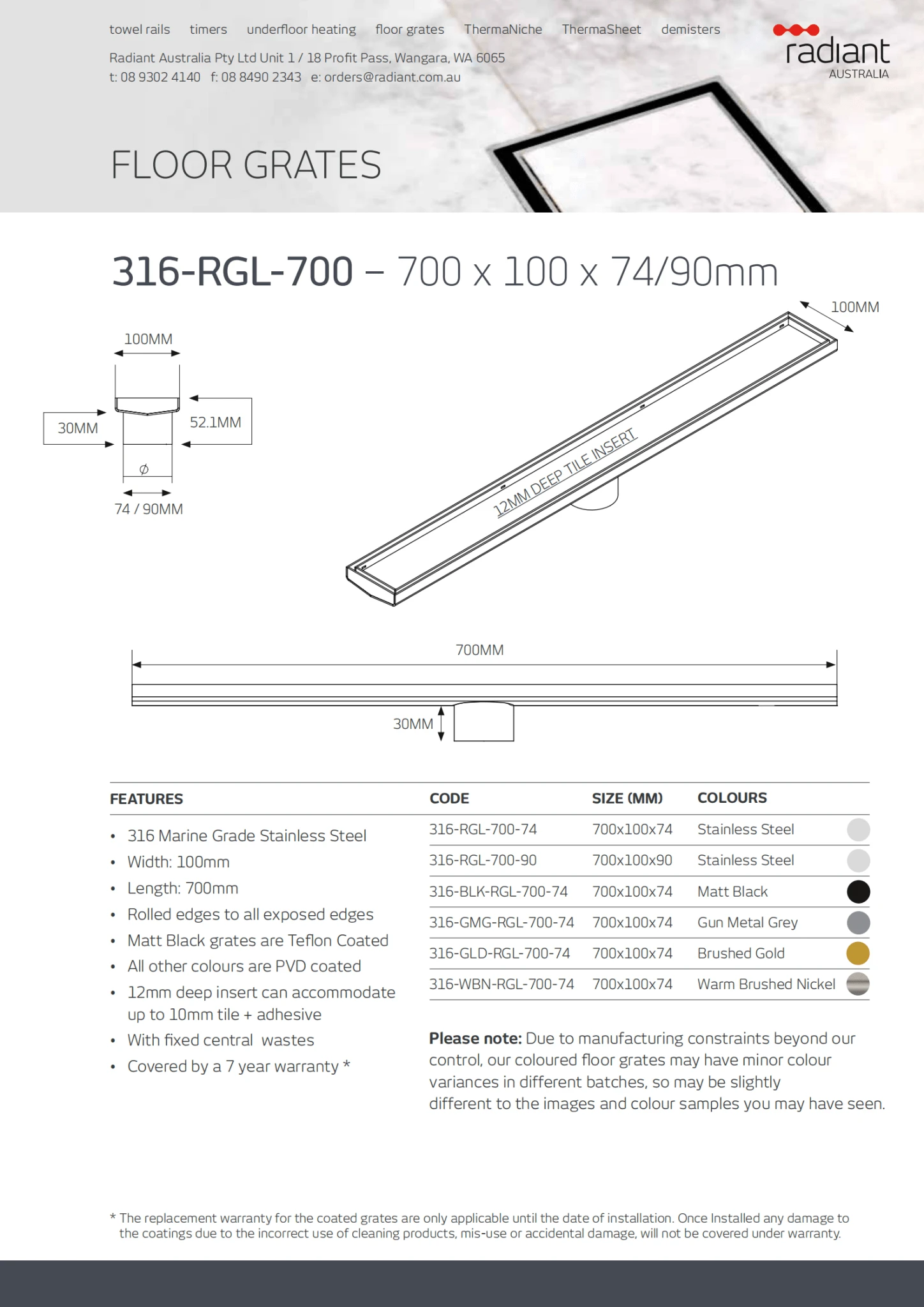

• Specsheet

Please Note: Due to manufacturing constraints beyond our control, our coloured floor grates may have minor colour variances in different batches, so may be slightly different to the images and colour samples you may have seen.

* The replacement warranty for the coated grates are only applicable until the date of installation. Once Installed any damage to the coatings due to the incorrect use of cleaning products, mis-use or accidental damage, will not be covered under warranty.
